Brakes, Part III: Shoes and Drums

In a drum brake system the shoes are located inside of a drum which spins around an axle and to which the wheel is attached. Pressing the brake pedal forces the outer surface of the shoes--through hydraulic pressure--to contact the inner surface of the drum, slowing rotation of the drum and wheel, and stopping the car. Each time you brake a small amount of the brake shoe is worn away. A smaller amount of the drums (drums are cast iron) is also worn away; usually the wear on the drum is not exactly uniform, so over time the brake shoes need to be relined with new friction material, and the drums (usually) need to be turned, i.e. ground down until the surface is uniform and smooth (actually, not exactly smooth, but uniformly rough in order for the shoes to "grab" it better).

When I removed the drums on my car I got several surprises. First, the brake-shoe return system (the springs and clips that pull the brakes back into the "off" position when you release the brake pedal) was not installed correctly. Also, the shoes and drum were oil-soaked, a result of wheel cylinders that had leaked because of long-time inactivity. This is normal in cars put in storage for long time periods because small amounts of moisture inside the hydraulic (oil) system eventually corrode the metal. The rubber seals also degrade and both of these allow brake fluid to leak out of the system onto the shoes and drums. This does not usually occur if the car is used daily because even if there is a small amount of moisture in the system, braking causes it to move around so it doesn't have the chance to corrode a specific spot.

I knew before buying the car that I would have to replace at least some of the components of the hydraulic system ( I ended up replacing most of it), but after assessing the condition of the brake shoes and drums I realized I would also have to replace the shoes and turn (repair) the drums.

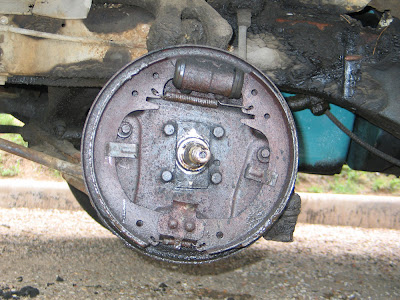

Before: Notice oil-soaked and corroded hardware.

After: Relined shoes, new wheel cylinders, cleaned hardware. The "hardware" is the springs at top and bottom and the two clips on the sides. I de-rested these Evapo-Rust, a very handy product to have on hand!



Hardware before Evapo-Rust





Hardware after Evapo-Rust






Freshly-turned drum. Isn't it pretty? I had Austin_Brake_&_Clutch turn the drums and reline the shoes. They have the proper equipment to turn these old-style front drums.


The threads on the axle were stripped. Here I am re-cutting the threads uing a die.





New tap and die set I bought from Harbor_Freight. The quality of the tools they stock is not as good as Craftsman,which I prefer, but they have a HUGE selection in stock, so you can usually find odd special tools there. I also bought my Evapo-Rust there.


After bleeding the brakes and adjusting the shoes the brake system is now restored and works as new, which was among the best, if not the best, in the industry for 1953. The Jul.-Aug. 1986, #94, issue of Special Interest Autos (now Classic_Car) road tested a 1953 Kaiser and said that "The large, 11-inch drum brakes pull the car down from 60 mph in about 225 feet (the same as a disc-braked modern car of this weight)." Not too bad for a 58-year-old car!






Here are the specifications, including brakes, for the 1953 Kaiser taken from the same issue of Special Interest Autos.

Thursday, January 13, 2011

Brakes, Part II: Wheel Cylinders and Lines

I had planned to do the same thing with the wheel cylinders as I was going to do with the master cylinder, viz. rebuild them. But they were in just as bad condition as the master cylinder, so it ended up that I bought new ones instead of rebuilding the old. It is not always easy finding parts for Kaisers and Frazers now, but there are a number of sources. Kaiser_Willys is a source that specializes in parts for Willys Jeeps. Kaiser-Frazer purchased Willys in 1953, and so they have many parts in common, but they are not always an exact fit. For example, the right front wheel cylinder's bolt holes were in the opposite corners on Kaisers than on Willyses, so I had to drill new holes in the backing plate for that wheel cylinder. All the rest fit perfectly with no drilling.



New wheel cylinder next to the old wheel cylinder. Notice that the old one has a chip, which in and of itself would have made it impossible to rebuild. Even without that chip, each of the old wheel cylinders were in similar condition to the master cylinder, with pits too deep to hone smooth (see previous post).



Drilling holes in the backing plate for the new right front wheel cylinder. Kaiser-Willys sent me a pattern with the new wheel cylinder which I used to mark the points for the new holes.



Here is the backing plate after two new holes were drilled. The old holes are now superfluous, but do not negatively affect the new wheel cylinder.



There was one small section of brake line near the rear left rear wheel that I accidently crimped as I was unscrewing the old fitting that hooks the brake line to the wheel cylinder. In order to make a new one I bought a length of the correct diameter line with fittings, measured the old line, cut the new one to size, bent it to the correct shaped, and flared the end so it would mate to the fitting on the wheel cylinder.


From left to right are the line-cutting tool, flaring tool, and shaping tool. At bottom are new brake lines. They come in common pre-cut sizes with fittings, so if you have a common vehicle, you would only have to shape the lines. But there was no size that fit the Kaiser, so I had to cut it to size and re-flare the (straight) end I had cut so it would seal properly.



New brake line after I had cut it.

Flaring the end of the freshly cut brake line.


Compare my flaring on the left with the flared end that came with theline on the right (it's the extra length of line I cut off to make the line the correct size).

New brake line installed on the car. Also note the new rubber brake line between the frame and suspension in the bakground. There are three of these on the car: two in front and one in the rear--I replaced all three.

Sunday, May 24, 2009

Brakes, Part I: Master Cylinder

Before I bought the car the owner told me the brakes "needed some work." After getting it here and starting to assess the brakes I learned just how much work they needed: a complete overhaul.

Automotive brakes use a hydraulic system having either disc or drum brakes or a combination of both. Kaiser, like most 1950's American cars, had drum brakes, so the following explanation will be based on that system.

In a hydraulic drum brake system there is a master cylinder connected by steel lines to four wheel cylinders, one at each while. The system is filled with fluid. When the brake pedal is depressed it actuates the piston in the master cylinder, pushing the fluid out of the master cylinder and through the brake lines. This increases the pressure in the (4) wheel cylinders. In each wheel cylinder the increasing pressure forces both pistons (there is one at each end of the wheel cylinder) outward. These pistons, in turn, force brake shoes, which are lined with a friction material, outward and against a steel drum that rotates around them. The car's wheels are bolted to these steel drums, hence stopping them (via the friction created when the shoes press against the drums) stops the car.


The wheel cylinder is at the top. When pressurized fluid enters it, it pushes the pistons outward, pushing the shoes (right and left) outward, which press against the drum (removed here).

In older cars that have sat for a long period of time small amounts of moisture can enter the line, which--if allowed to sit in the same place--can rust cylinders or lines, resulting in leakage. Additionally, the rubber components in the master and wheel cylinders can also deteriorate, leading to loss of sealing power and leakage, which of course means loss of braking power. Besides the hydraulics the brake shoes can become worn thin, or oil-coated (if the wheel cylidners or oil seals are leaking--the oil seal prevents the grease that lubricates the wheel bearings [which the wheels rotate around] from coming into contact with the brake shoes) and the drum can become grooved. I knew from the owner's description that the wheel cylinders, or at least some of them, would have to be rebuilt. I decided I would check over the whole system first to determine what would need to be re-built or replaced, including master cylinder, (4) wheel cylinders, lines, drums and shoes.

I began with the master cylinder. From a visual inspection alone I determined that it needed at least to be rebuilt with new rubber seals. So I ordered a rebuild kit from Kanter_Auto_Products, and disassembled the master cylinder. The first step in the re-building process is to thoroughly clean the cylinder, which I did by first soaking and scrubbing with mineral spirits, followed by a spray application of brake cleaner. These two steps remove all grease and oil. To remove the rust I soaked the cylinder overnight in Evapo-Rust, an amazing product that removes all traces of rust, leaving clean, bare metal. Best of all, the product is non-toxic and biodegradable!


Brake Pedal


Brake pedal removed in preparation to removing master cylinder, which bolts to the frame directly under the brake pedal.


Brake pedal removed

Master cylinder removed

Cleaning the master cylinder with brake cleaner. This is very toxic, and I should have been wearing goggles. All the other times I WAS wearing goggles!


Master cylinder and associated parts before Evapo-Rust

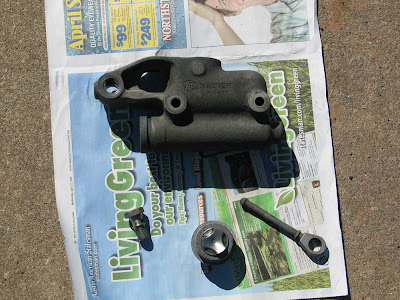

Master cylinder and associated parts after Evapo-Rust

The next step is to hone the master cylinder. Over time small amounts of rust will pit the metal, leaving a rough surface. In order for the seals to work properly you must have a smooth surface, which is achieved through honing. I bought a small hone that can be attached to a hand drill from Harbor_Freight_Tools. In order to achieve a true hone, you must have the master cylinder held stationay on a vise. Normally you would attach the vise to a work bench, but since I don't have one I had to think of an alternative method. So I bought a laminated shelf from Lowes, and a suction mounted vise from Sears. I mounted the vise onto the shelf and anchored it with my knee as I honed.

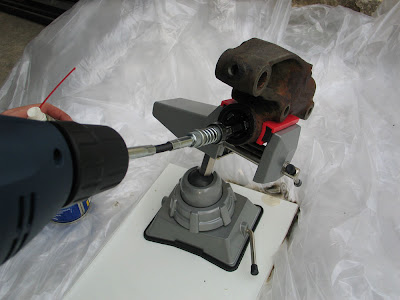

Here is my vise / honing operation. It worked very well, but unfortunately the master cylinder was beyond repair.



After much honing I realized that the pits in my cylinder were too deep for it to be rebuilt. It would be possible to hone until the pits were completely gone, but by that time the cylinder bore would be too large, which would prevent the seals from sealing properly, so that was not an option. After all of that work, I ended up returning my rebuild kit to Kanter and ordering a new (rebuilt, actually) master cylinder, which is now installed in the car.





New Master Cylinder





New and old side by side

The back of the master cylinder has two fittings that the two brake lines attach to. One of them is a rectangular brass piece that is not fixed, i.e. before you tighten the end fitting, the side fitting (the brass piece) can be placed at any angle relative to the master cylinder you want, but of course it must be placed at the correct angle to line up with the brake line. So before I removed the end fitting I had my wife take a picture of the two fittings to I could get the angle right when I put them back together.



Picture of the angle of the brass fitting






Here I am ready to install the brass fitting on the new master cylinder. I brought the picture up on the computer, measured the angle (crudely) with two rulers (they wouldn't have needed to be rulers, but they served as a convenient straight edge) and...







transferred the angle to the new master cylinder, then tightened the end fitting down with the brass fitting at the correct angle. And it worked!
